Product features:

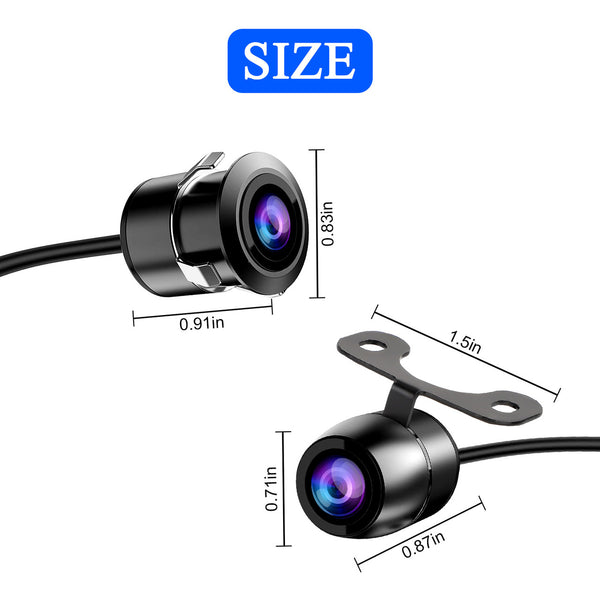

✅2 Installation options,you could choose bracket mounting or flush mounting as per your case.

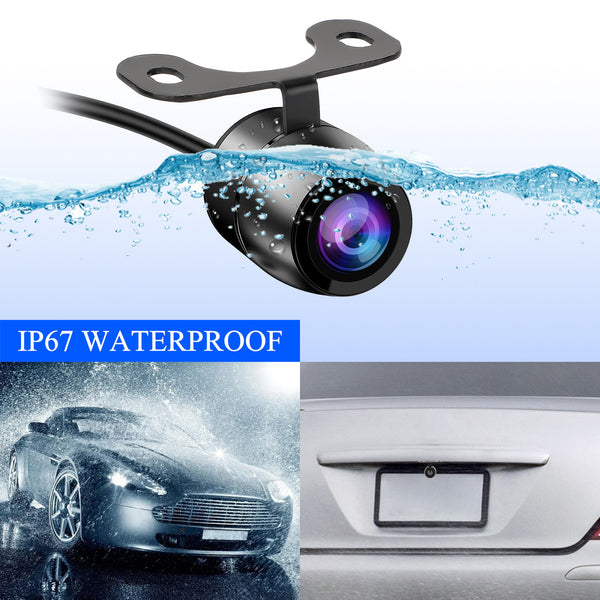

✅IP67 Waterproof Standard: Don’t worry about fog or mist penetrating the camera.

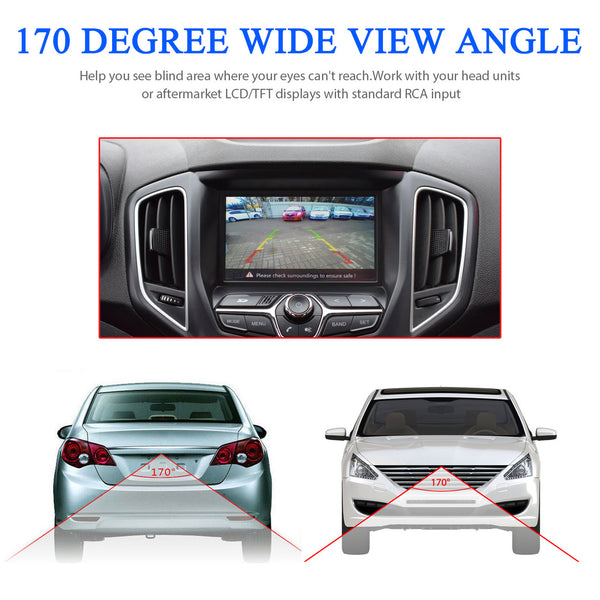

✅ 170° Wide View Angle: Help you see blind area where your eyes can't reach.

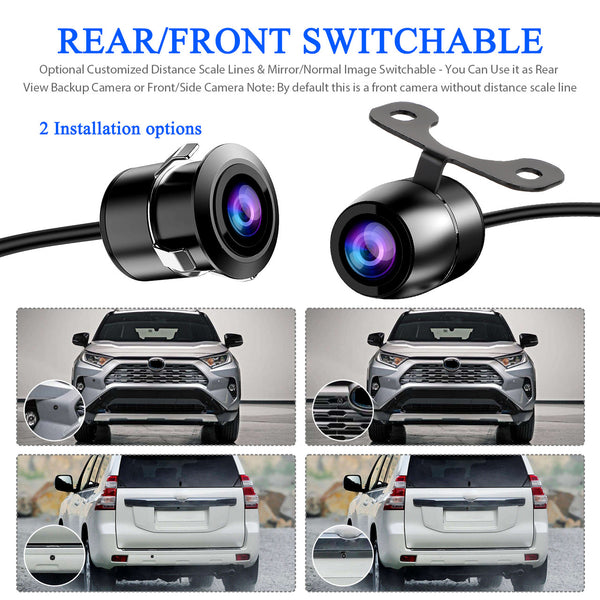

✅ Rear/Front Switchable: Optional Customized Distance Scale Lines & Mirror/Normal Image Switchable.
Product Specification:

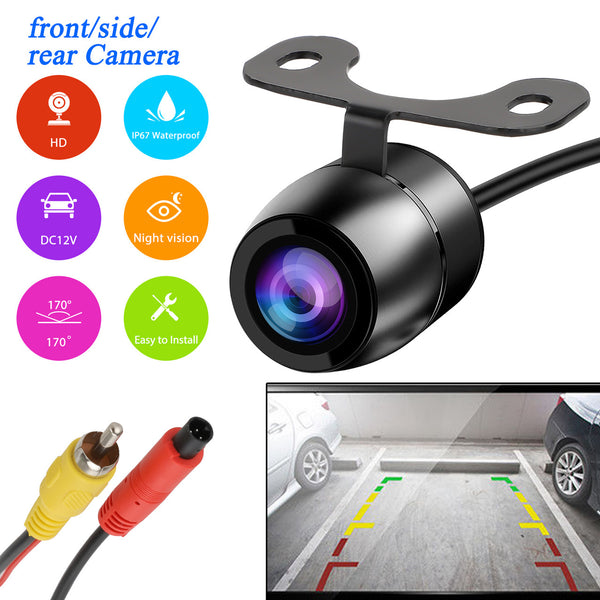

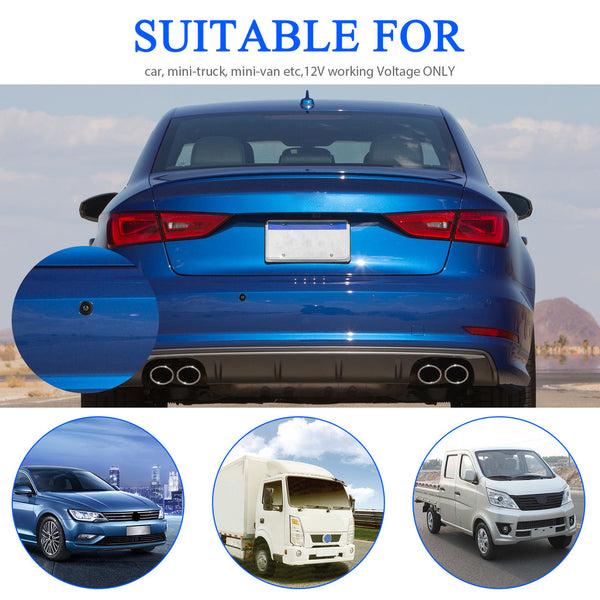

Type: Car front/side/rear Camera
Image Sensors: PC1030 1/4 Inch Color CMOS
Effective Pixels: 648 x 488 Pixels
Lens Angle: 170 degrees
Image Pipeline Feature: Auto exposure, AWB, AGC, Auto ficker detection and cancellation
Video System: PAL/NTSC(Automatic throw-over)
Resolution: 420TV lines
Waterproof Class: IP 67
Operation Temperature: -20℃~ +75℃
Storage Temperature: -40℃~+85℃
Video Output: RCA connector
Working Power: DC12V
Current Consumption: 60mA
Video Cable Length: Approx. 6 m/ 236.2 inch
Power Supply Cable Length: Approx. 1.2m/ 47.2 inch
Note:

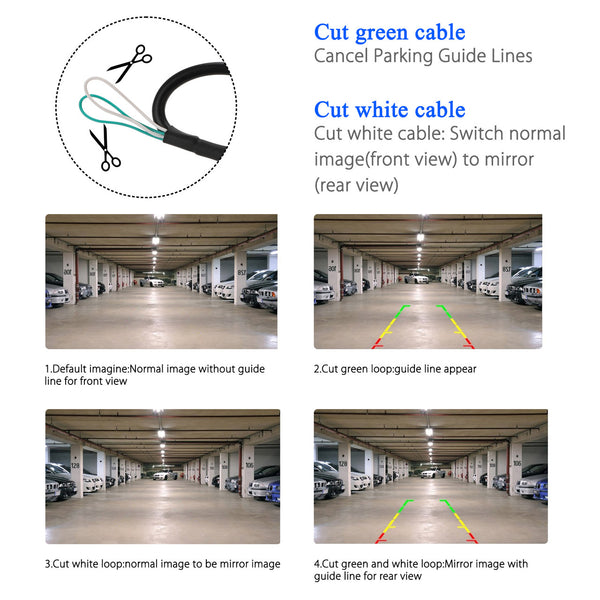

After cutting either the white or green wire for your configuration, you need to ground one side of the cut wire for the camera to convert. One side will give you a blank image and one side will give you your converted camera. Just tie one side of your cut wire to the black ground/earth wire and power it up.

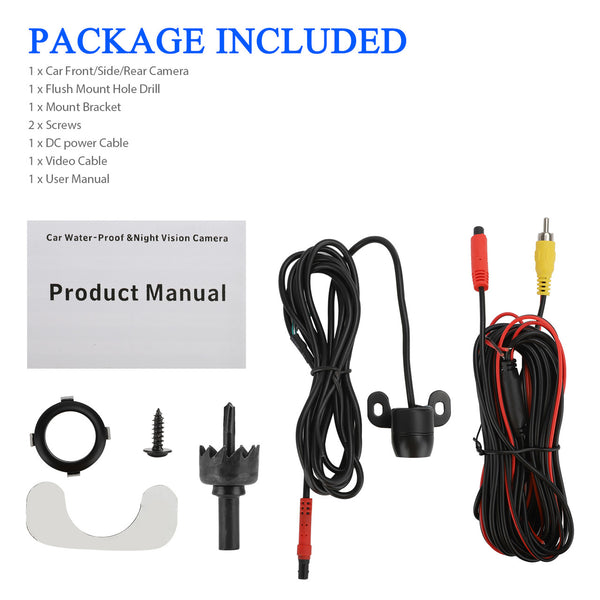

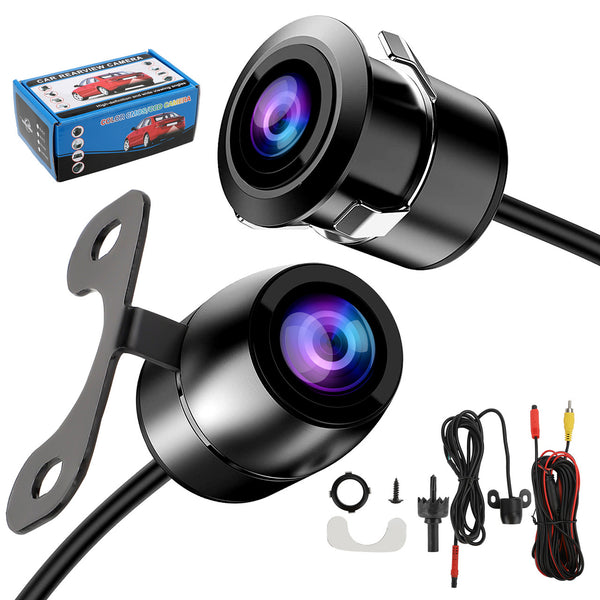

Package Includes:
1 x Car Front/Side/Rear Camera
1 x Flush Mount Hole Drill
1 x Mount Bracket
2 x Screws
1 x DC power Cable
1 x Video Cable
1 x User Manual
