Product Features:
Battery Capacity /Voltage Dual Parameter Display: 12V 24V battery monitor can test the battery capacity (7-segment display - 13% 26% 39% 52% 65% 78% 91%). At the same time, the battery tester can indicate the voltage value.

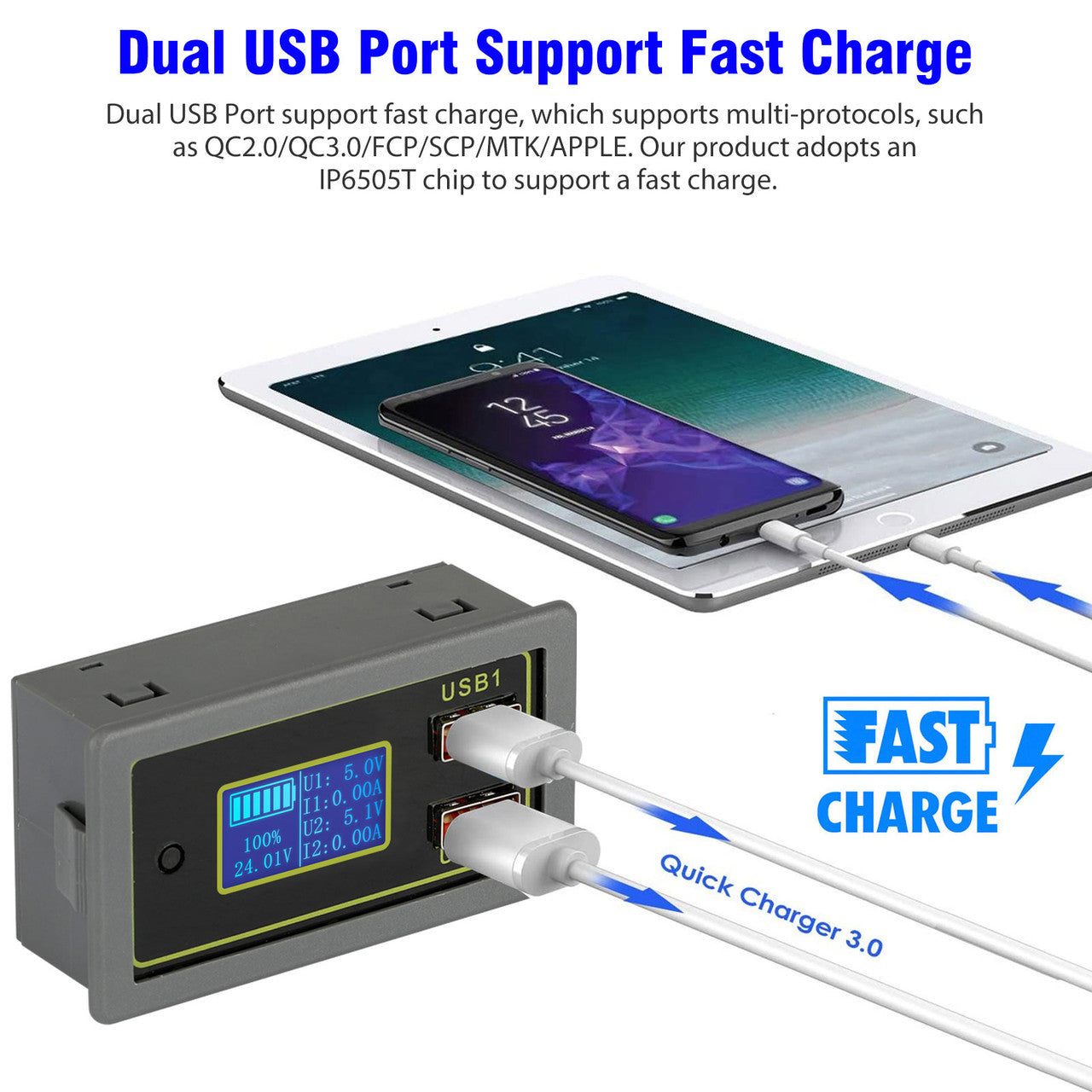

Dual USB Port Support Fast Charge: Dual USB Port support fast charge, which supports multi-protocols, such as QC2.0/QC3.0/FCP/SCP/MTK/APPLE. Our product adopts an IP6505T chip to support a fast charge.

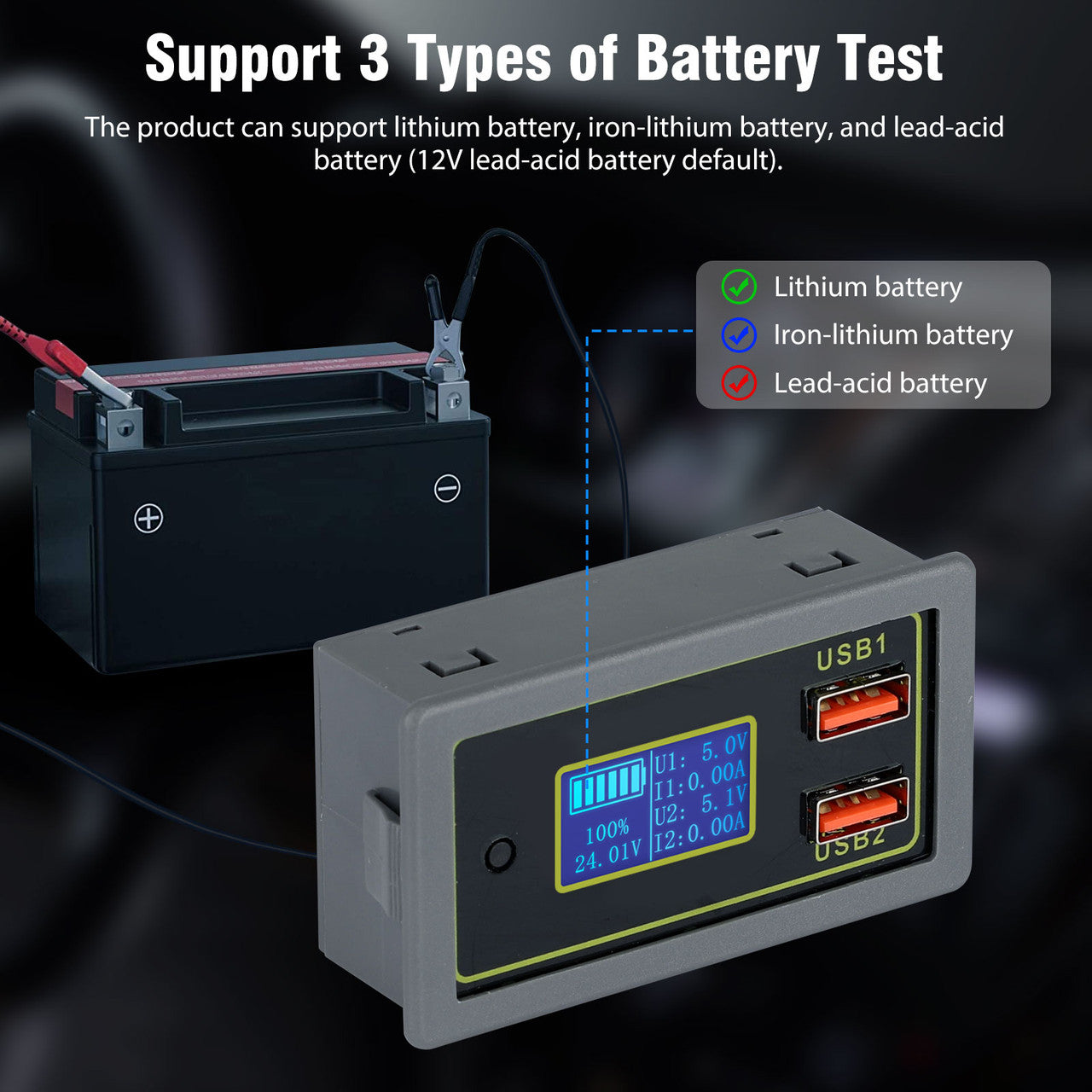

Support 3 Types of Battery Test: The product can support lithium battery, iron-lithium battery, and lead-acid battery (12V lead-acid battery default).

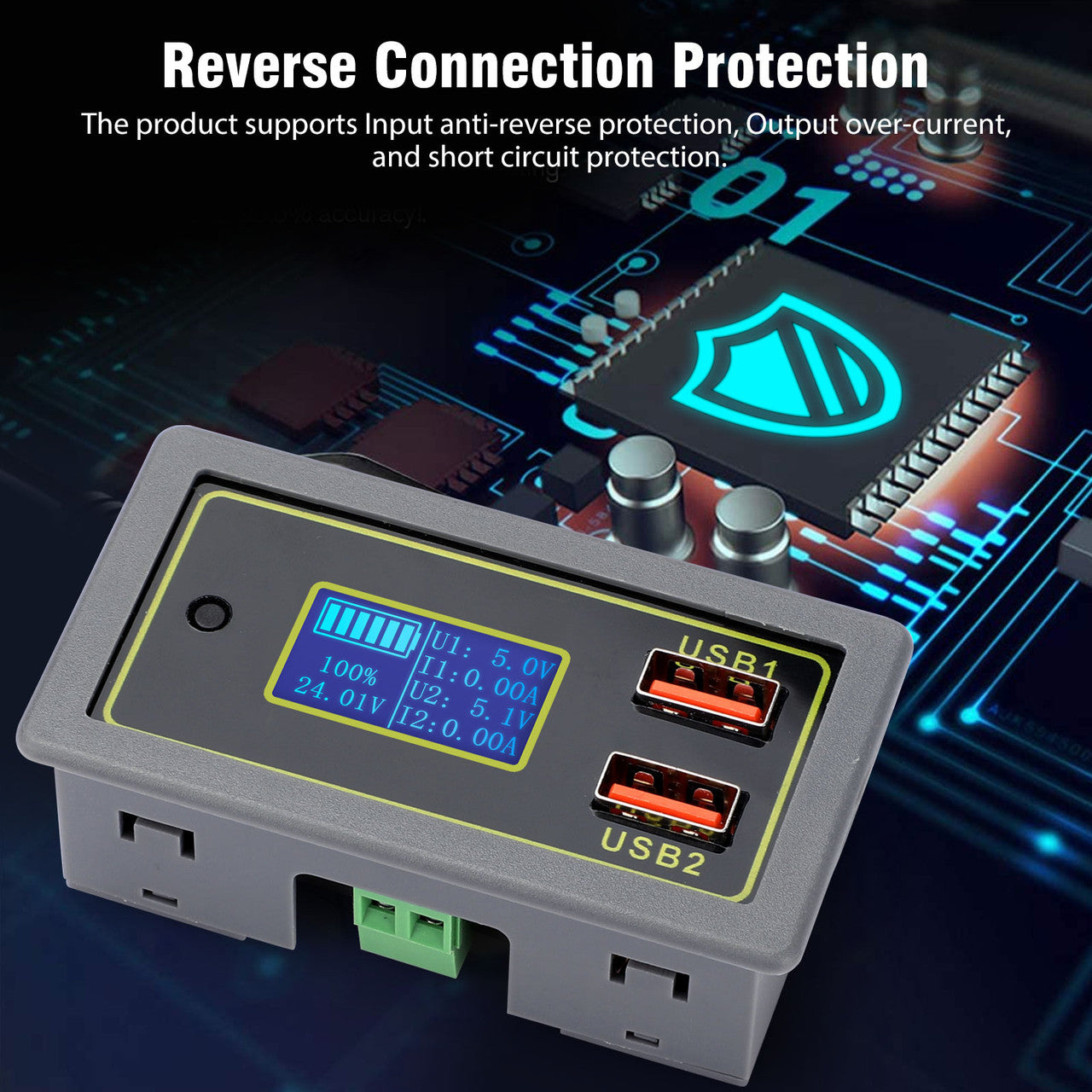

Reverse Connection Protection: The product supports Input anti-reverse protection, Output over-current, and short circuit protection.
Applications: It can be used on a 12V car or a 24V truck. Concise LED screen displays the battery voltage/capacity, fully controlling the battery capacity.
Product Specification:

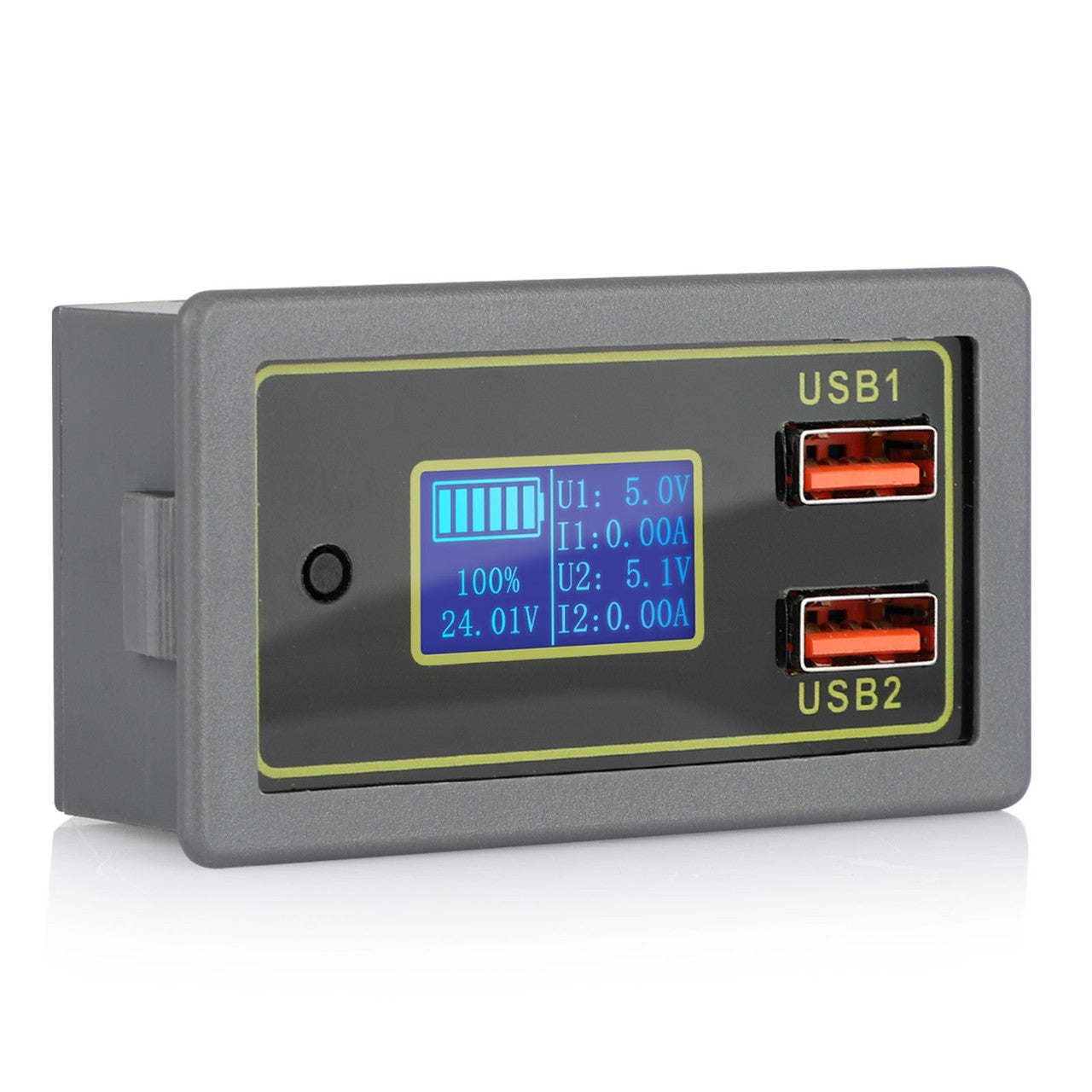

Type: Battery Voltage Point Gauge
Power Display: 7-segment display--13% 26% 39% 52% 65% 78% 91%
Output Voltage: Default 5V, automatic adjustment between 3-12V after triggering fast charging
Output Power: Maximum 24W (5V - 4A, 9V-2.5A, 12V - 2A, etc.)
USB Efficiency: 90% -97%
Working Temperature: -10 ℃ —60 ℃
Working Humidity: 10-80% (no condensation)

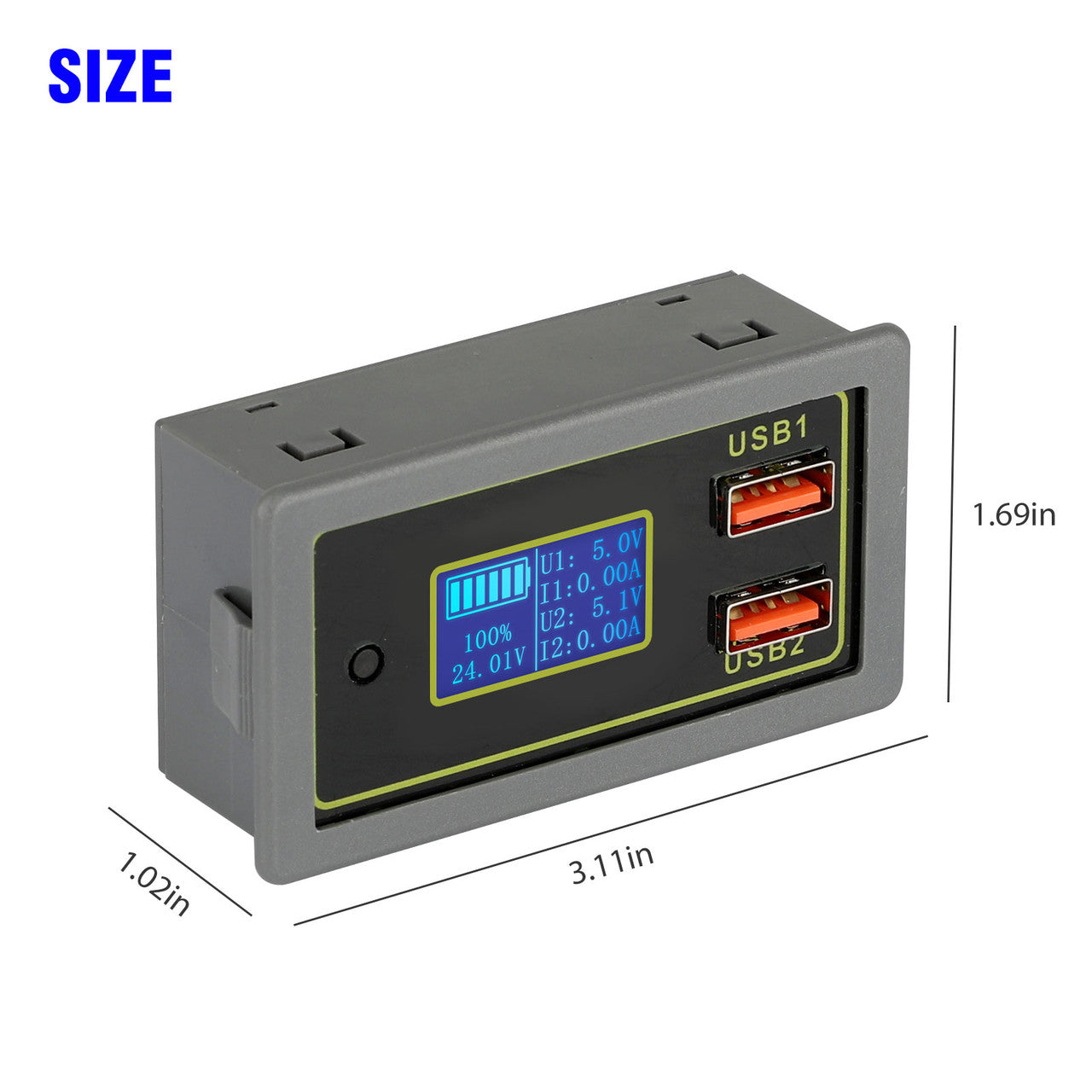

Installation Size: 75mm * 39mm
Note:

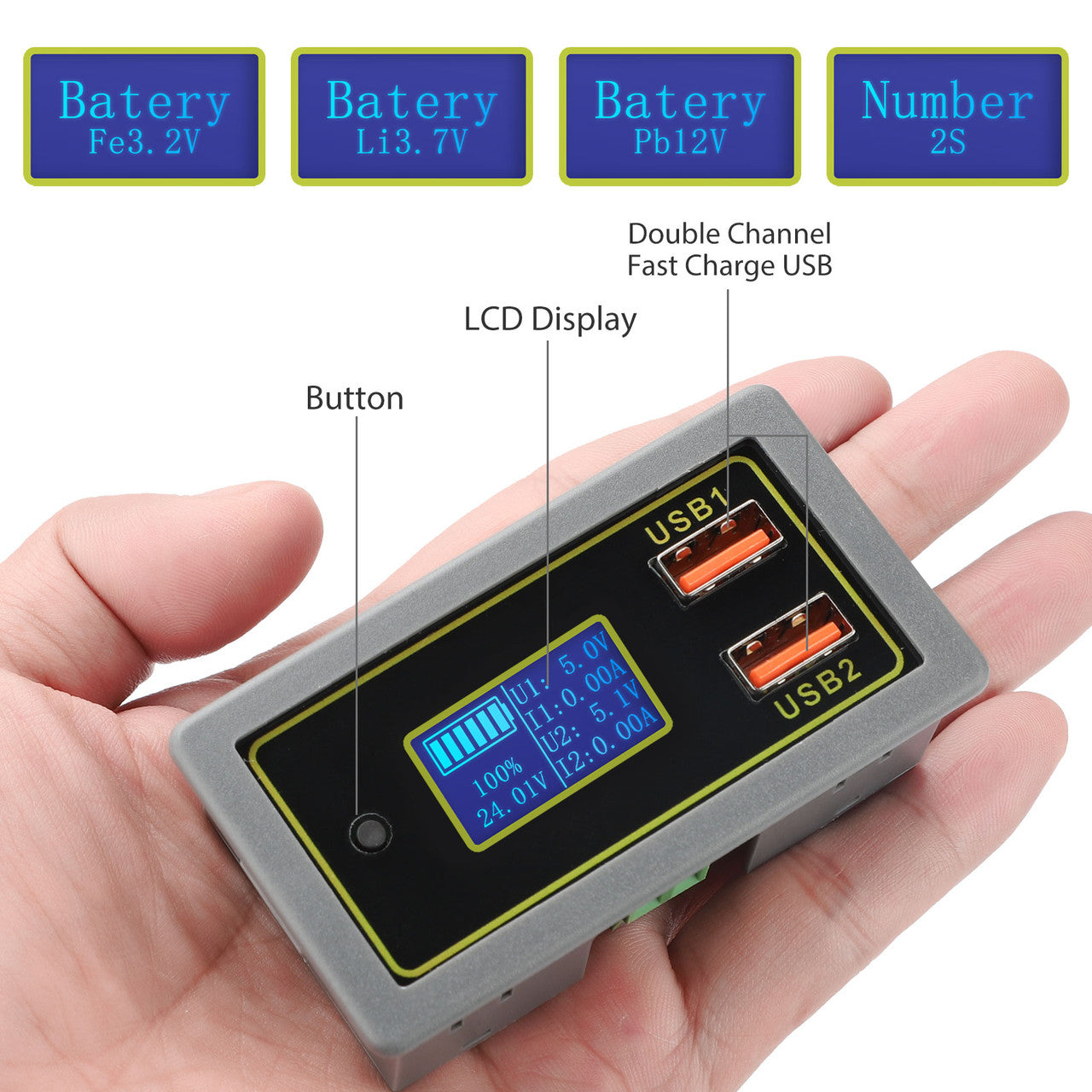

Button Function Description:
1. Control the backlight
Short press—switch the backlight on and off
2. Set the battery type and number of strings
(1) Press and hold the case for more than 3 seconds to switch to the battery type interface Battery.
In the battery type interface, short press to select the battery type. The battery type can be switched between Pb12V / Li3.7V / Fe3.2V
Pb12V—12V lead-acid battery
Li3.7V—Ternary lithium battery
Fe3.2V—lithium iron phosphate battery
(2) After selecting the battery type, press and hold the case for more than 3 seconds to switch to the battery string number interface number
In the battery string number interface, short press to select the battery string number NS (N represents the number of strings)
12V lead-acid battery—N = 1/2
Ternary lithium battery—N = 2/3/4/5/6/7
Lithium iron phosphate battery-N = 2/3/4/5/6/7/8
(3) After selecting the number of battery strings, press and hold the case for more than 3 seconds to return to the normal interface

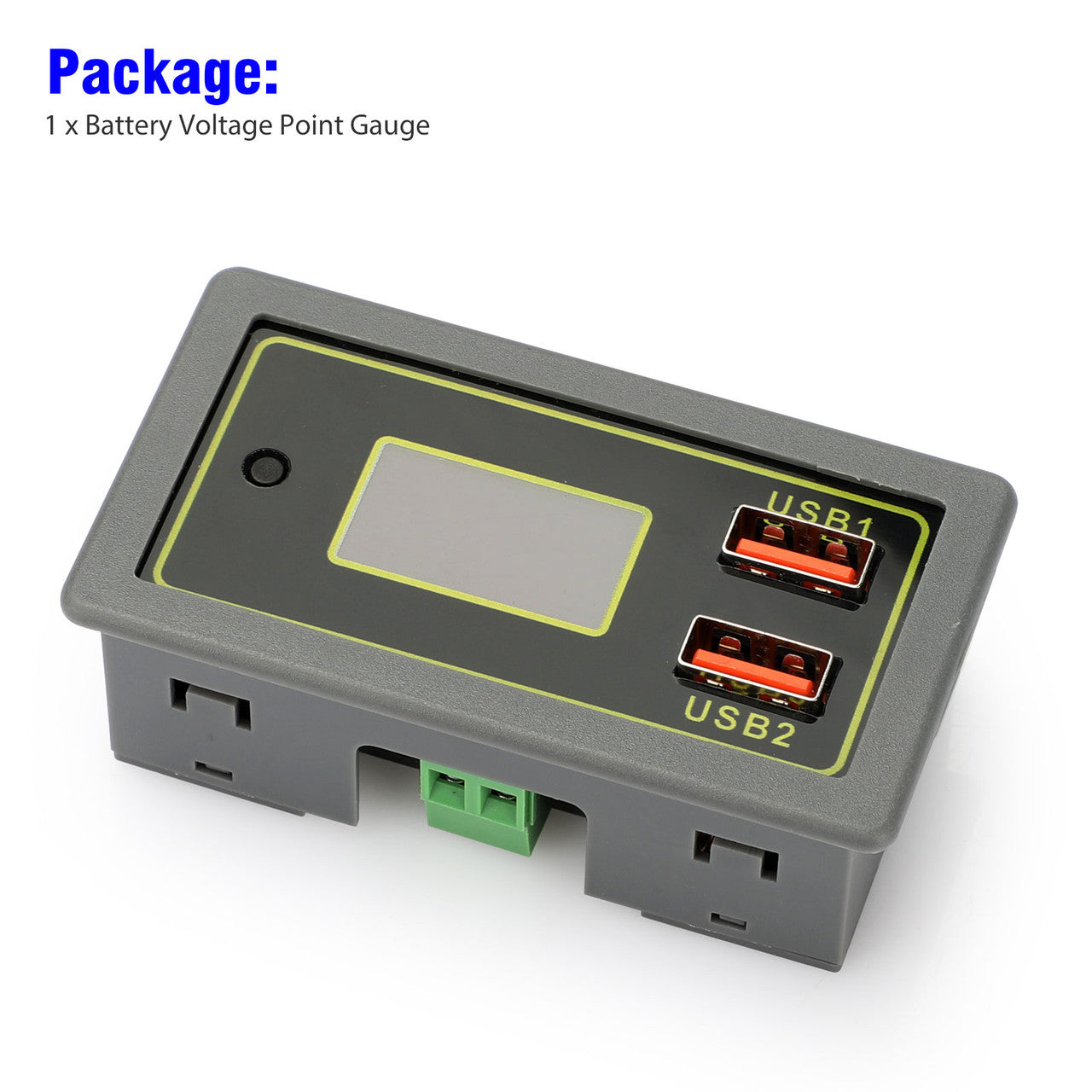

Package Includes:
1 x Battery Voltage Point Gauge
